    Request more information or set up EndoSheath trial today!


    ENDOSHEATH

    • One innovation of PrimeSight endoscopy is that the working channel required for suction, biopsy, irrigation or other operative needs is incorporated into the EndoSheath protective barrier and not the PrimeSight endoscope. This innovation eliminates the difficult-to-clean channel which exists in conventional endoscopes.
    • Helps keep the capital equipment budget low since one PrimeSight scope can do the work of many conventional scopes
    • Reduced endoscope reprocessing and down time means that you can meet you endoscopy needs with fewer endoscopes. Plus, unplanned endoscopies can be more easily accommodated.
    • You can use the same scope for diagnostic and therapy procedures since the 1.5 mm or 2.1 mm working channel is incorporated into the sheath instead of the endoscope
    • Reduced chemical exposure for equipment lowers service and repair expenses
    • Reduced staff exposure to toxic disinfection chemicals

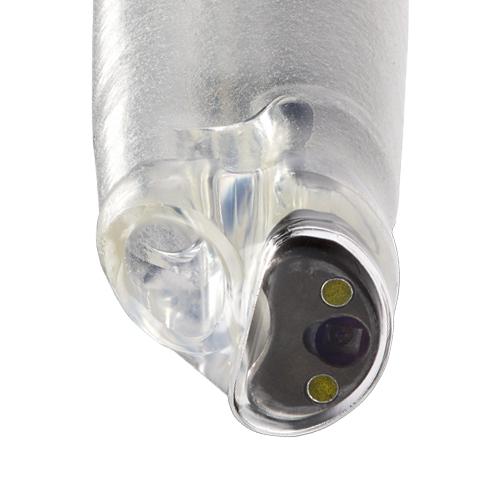

    EndoSheath

    The EndoSheath protective barrier is available in multiple models, each with a different size working channel, allowing you to configure the endoscope to fit the procedure. As a result, one endoscope can support a full range of diagnostic and therapeutic procedures.

    Working channel sizes may vary but includes the following:

    • 1.5 mm – Diagnostic procedures, smaller patients
    • 2.1 mm – For therapeutic procedures

    Flexible Endoscopes

    CST-4000 Fiberoptic Cystoscope

    • Length: 370mm, angulation: 215° up/140° down, field of view 110°
    • Outer diameter varies based on choice of EndoSheath Protective Barrier

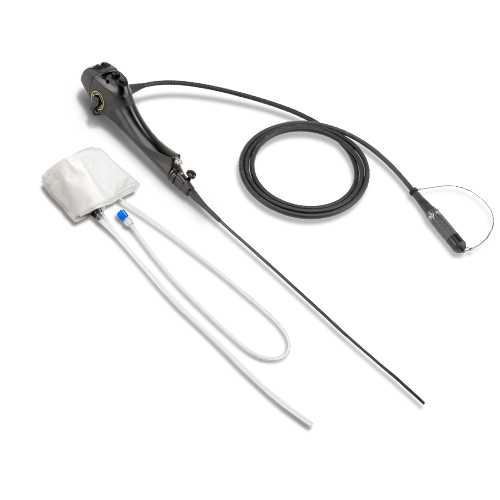

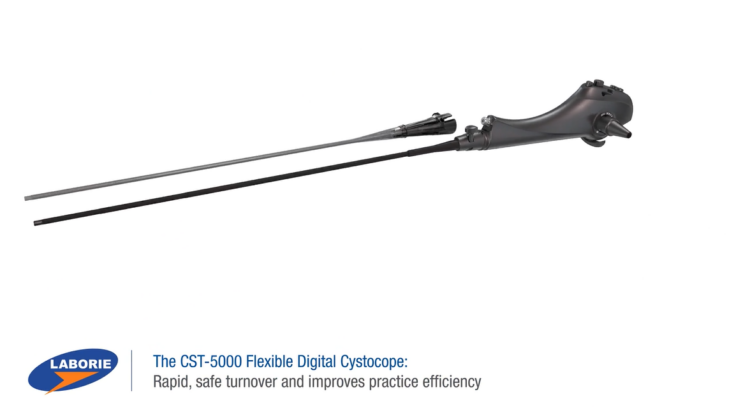

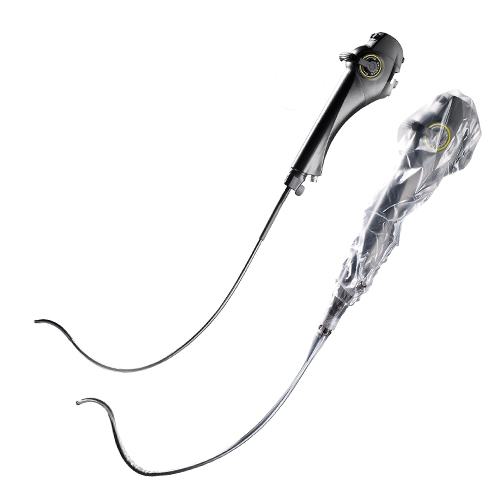

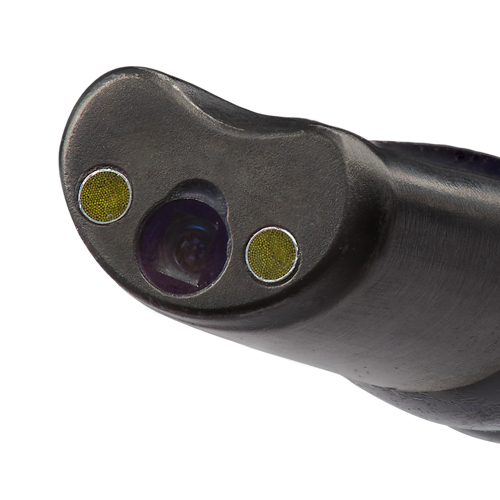

    CST-5000 Video Cystoscope

    • Length: 370mm, angulation: 215° up/140° down, field of view 110°
    • Outer diameter varies based on choice of EndoSheath Protective Barrier

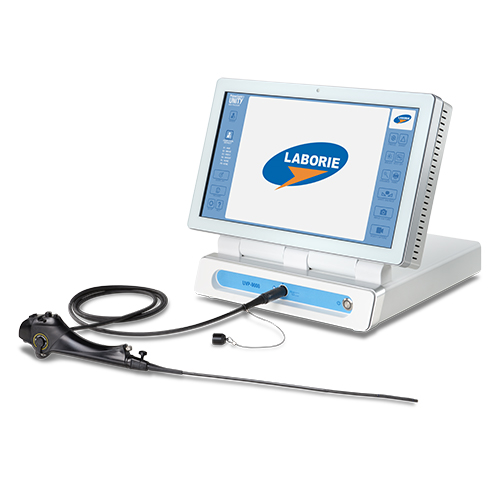

    PRIMESIGHT UNITY

    Width: 465mm

    Depth: 370mm

    Height: 136mm

    Weight: 11.3 kg (25 lbs)

    Storage: 500GB Internal Solid State Drive

    Video Outputs: DisplayPort type (HDMI and DVI compatibility with adapter cable)

    Additional USB ports: 3

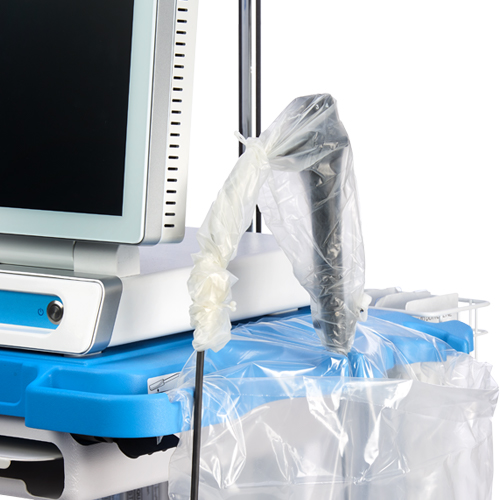

    PRIMESIGHT UNITY Cart

    DIMENSIONS (INCLUDING WHEEL BASE)

    Width: 671mm

    Height (without IV pole): 942mm; adjusts up to 1197mm

    Height (with IV pole): <1696mm; adjusts to 2256mm

    Depth: 611mm

    Caster/wheel size: >125mm

    Shelf size: 428mm (W) x 328mm (D)
